| 起源の場所: | 広東省、中国 |
|---|---|
| 証明: | ROHS,SGS |
| モデル番号: | MG-GT |
| 最小注文数量: | 交渉 |
| 価格: | negotiable |
| パッケージの詳細: | カートンで詰められる |
| 受渡し時間: | 3~8日 |
| 支払条件: | T/T |
| 供給の能力: | 100000pcs/day |
| 継続使用の臨時雇用者: | -40-400℃ | Cの内容（%）: | 99.9% |
|---|---|---|---|
| 適用: | IC CPU MOS LED脱熱器 | 硬度: | 85海岸A |
| 等級: | 産業等級 | サイズ: | T:0.025mm W:300mm L:20m |
| 厚さ: | 0.025mm | 色: | 銀製灰色 |
| ハイライト: | 20m Length thermal conductive graphite sheet,0.025mm thickness Natural Graphite Sheet,20m Length Natural Graphite Sheet |
||
0.025mm 300mm Width 20m Length Smartphone Heat Dissipation Natural Graphite Sheet
M-GT thermal conductivity of graphite is the natural graphite sheet with high thermal conductivity. Which is easy construct. It is flexible and compressible. Also, it can provide a coating (such as insulation requirement) , non-coating, or something wrapped. The applicable temperature extends from -40~400℃(inert environment).Without gas, liquid penetrate, no aging for graphite layer and embitterment, it can be applied into most of the chemical medium. Thermal conductivity of graphite can be custom-made required by clients. It has wide applications, such as integrated circuit, electronic device, high power density computer, conducting cutting-edge electronic instrument and so on. Which enjoys a good market background in mobile phone, computer and electronics industry.
Features & Benefits
l Ultra-high thermal conductivity, easy to operate;
l Low thermal resistance
l Light weight
Typical Applications
IC ; CPU; MOS; LED; Heat sink; LCD-TV; Laptop; Communication equipment; Wireless switch; DVD; Hand-held device; Camera/digital camera; Mobile phone
What’s the different between Natural Graphite Sheet & Systhetic Graphite Sheet?
Physical Properties
|
Property |
M-GT |
Unit |
Test Method |
||||
|
Thickness |
0.03 |
0.05 |
0.07 |
0.1 |
0.15 |
mm |
ASTM D374 |
|
Color |
Black |
Black |
Black |
Black |
Black |
一 |
Visual |
|
Specific Gravity |
1.78 |
1.7 |
1.65 |
1.6 |
1.6 |
g/cm3 |
ASTM D792 |
| Thermal conductivity |
1200 |
1100 | 900 | 700 | 700 | w/m-k |
/ |
|
ASTM D5470 |
|||||||
| 11 | 10 | 9 | 8 | 8 |
/ |
||
|
ASTM D5470 |
|||||||
|
Temperature range |
400 |
400 |
400 |
400 |
400 |
℃ |
EN344 |

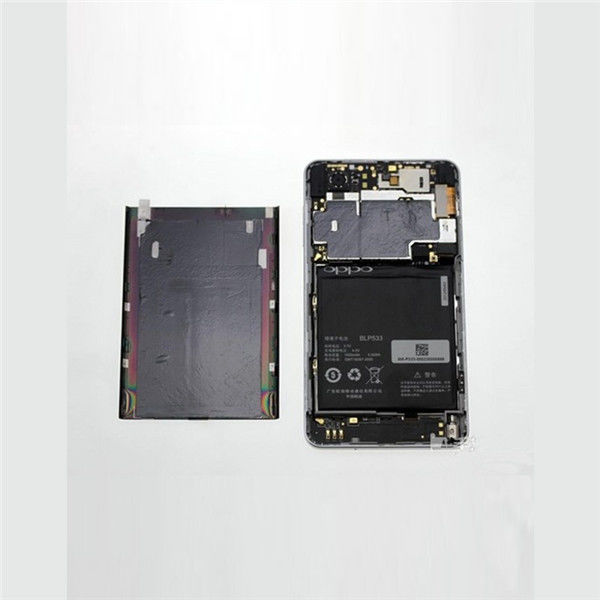

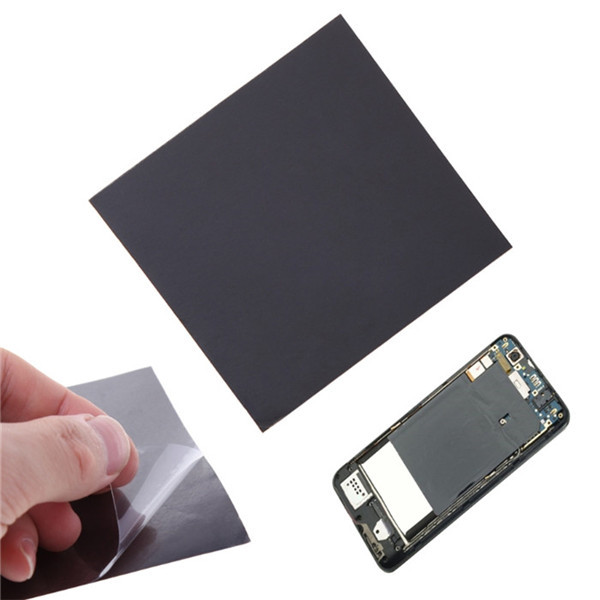

Product Pictures
FAQ
Q: What is the size of the product you can supply?
A: Thickness: 0.06mm/ 0.075mm/0.11mm
Jumbo roll size: 500mm X 500m
Log roll size: 500mm X 33m
Slit roll size: We can make the width down to 1mm Custom size is welcomed
Q: May I get samples?
A: Yes, of course.
A4 sheet or width less 10mm roll sample is free, the customer only pays the freight cost.
Q: How about the price?
A : Polyimide tape manufacturer direct sale price
Also, supply this item in various grades to meet customer demands.
Q: What is your MOQ?
A: 100 Square meter or you tell us the size you need, then we calculate the MOQ for you.
Q: What should we pay attention to when used it?
A: Just let know application, then we shall offer solutions.
